Electrical System
The following electrical system can be integrated into our Wheel well cabinets, Murphy bed systems, sofa sleepers and custom bench seats
Standard
- Victron Energy with Renogy DC/DC battery charger and integrated solar controller – standard offering

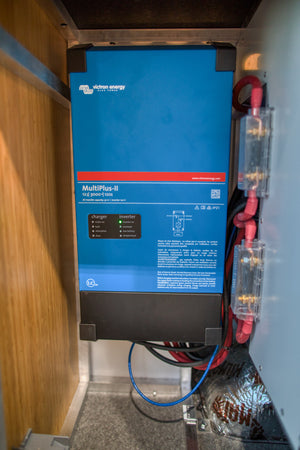

- Multiplus-II 3000-watt inverter/charger (charges up to 120 amps @12V)

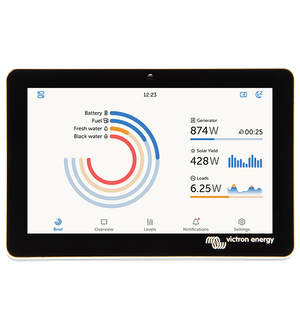

- Cerbo GX with touch 70 – communication hub with Bluetooth and internet connectivity – 7” touch screen. Can be monitored and controlled remotely through the internet

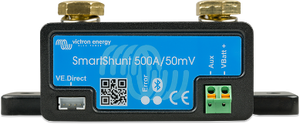

- Smartshunt 500 A- precisely monitors the battery current
- Ac/dc distribution panel – convenient location for all fuses and circuit breakers
- 12V Main switch
- Multiple USB-C, 12v ports and Duplex 120V outlets with combined USB-C

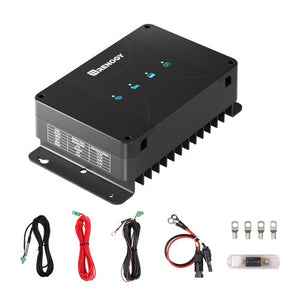

- Renogy DC/DC charger with MPPT input – 50 amps – combined alternator charging and solar input. These units can be run in Parallel for 100ah alternator charging capacity
Ecoflow

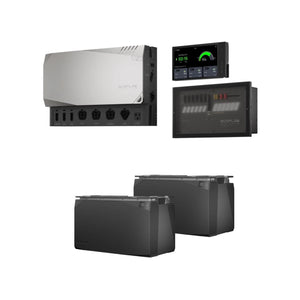

Ecoflow 2 kw (Approx 166 ah battery storage) and 5Kw power kits (approx. 400 ah storage)
EcoFlow Power Hub combines two MPPT solar charge controllers, one battery charger with MPPT, one DC-DC step-down converter, and an inverter-charger. With fewer modules and thinner wires, this 48V system saves you space and installation hassle.
Batteries
- Both AGM and LIFePO4 options are available. Heated and unheated lithium battery options up to 600 ah (7200w)
Note: Ecoflow power kits units include batteries of 160ah, 400 ah or 2 x 400ah (800ah total)
- Li Time – This is our standard lithium option from 200-600 ah systems. Heated batteries are available as an option
- Renogy – This our standard AGM selection and their optional lithium batteries are available on request. (200-600 ah systems available) Heated batteries are available
- Battle Born – Optional lithium batteries at 100ah increments up to 500ah systems. Heated batteries are available
